Euphoria System 210 Shower system with thermostat for wall mounting
GROHE Euphoria shower system with XXL head shower for a totally indulgent experience
Step under the extra-large showerhead and be enveloped in the shower of your choice, whether relaxing or energising, with the GROHE Euphoria 210 shower system with diverter. The system offers 3 different spray patterns for total indulgence: there’s a gentle Rain Spray, the water-efficient SmartRain and a revitalising Massage Spray. Thanks to GROHE DreamSpray technology you can be certain of an even flow from every nozzle while the DropStop feature prevents drips once you are finished. GROHE TurboStat technology guarantees a constant temperature throughout. Family-friendly, it also features the GROHE SafeStop button which can limit the temperature to 38°C to prevent scalding. The dazzling GROHE Starlight stainless steel finish is a scratch-resistant surface that will stay sparkling for years to come.
- consists of:
- Horizontal swivable 450 mm shower arm
- exposed thermostat with Aquadimmer function
- allows change between:
- Rainshower Cosmopolitan 210 metal head shower (28 368 000)
- spray pattern: Rain
- maximum flow rate (at 3 bar): 16 l/min
- with ball joint
- angle of rotation ± 15°
- hand shower Euphoria 110 Massage (27 221)
- 3 adjustable sprays
- Rain, Massage, SmartRain
- maximum flow rate (at 3 bar): 15.5 l/min
- adjustable in height with gliding element
- shower hose Silverflex 1750 mm 1/2" x 1/2" (28 388)
- GROHE TurboStat compact cartridge with wax thermoelement
- GROHE SafeStop at 38°C
- GROHE SafeStop Plus optional temperature limiter at 43°C included
- GROHE MetalGrip ergonomically shaped metal handles
- GROHE DreamSpray perfect spray pattern
- GROHE Long-Life finish
- SpeedClean anti-lime system
- Inner WaterGuide for a longer life
- TwistStop (to prevent hose from twisting)
- suitable for instantaneous heaters (min. 19 kW/h)
- minimum flow rate 7 l/min.
- optional upgrade: GROHE EasyReach tray (26 362), sold separately
- maximum flow rate (at 3 bar): 15.5 l/min
CAD Data

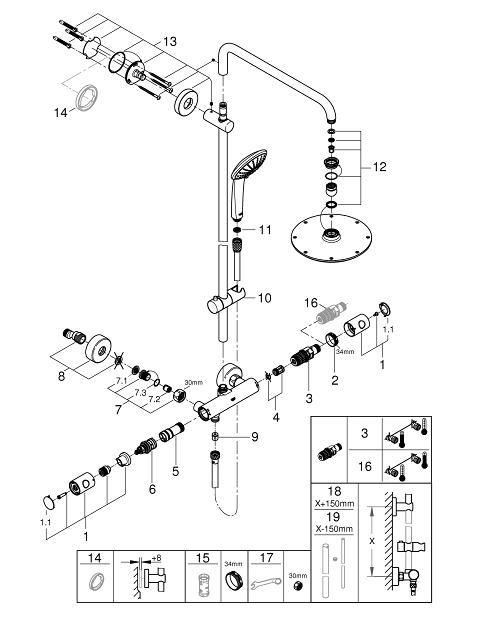

Pos.-nr. | Prod. description | Order-nr. |
---|---|---|
Optional accessories | ||
1 | Costa metal handle 1/2" | 47984000 |
1.1 | Cap | 6458500M |
2 | Fitting ring | 47743000 |
3 | Thermostatic compact cartridge 1/2" | 47439000 |
4 | Sound absorber | 47398000 |
5 | Water flow | 47751000 |
6 | Aquadimmer | 12433000 |
7 | Non-return valve | 47189000 |
7.1 | Dirt Strainer | 0726400M |
7.2 | Non-return valve | 08565000 |
7.3 | O-ring ø17 x ø2 | 0305500M |
8 | S-union | 12662000 |
9 | Non-return valve | 08565000 |
10 | Sliding piece | 12140000 |
11 | Dirt strainer | 0700200M |
12 | Inlet valve assembly | 45933000 |
13 | Outlet shower holder | 48279000 |
14 | Compensation disc | 27180000* |
15 | Socket spanner | 19332000* |
16 | GROHE TurboStat cartridge 1/2" | 47175000* |
17 | Special spanner | 19377000* |
18 | Shower system pipe for retrofitting | 48053000* |
19 | Shower system pipe for retrofitting | 48054000* |
20 | Shower arm for shower systems | 14047000* |
